When it comes to fulfillment automation, receiving and shipping systems might look similar on the surface—scan tunnels, conveyors, labelers, sort logic—but the operational goals behind each are fundamentally different. Receiving systems are designed to capture and verify inbound inventory. Shipping systems are built to finalize and release outbound orders. Designing automation for each requires throughput equipment, tailored logic, and software integration.
Below, we break down the key differences and design considerations for receiving vs. shipping automation.
(Pictured: Receiving System Sorting to Many Store Locations)
Receiving – First Steps: Unload, Identify & Gather Data
Receiving Part 1: Rapidly unload, identify all incoming orders, while recording accurate data about all items received.
The initial goal of a receiving system will be to aid your team in unloading the truck rapidly, while scanning all items, recording the data about each one for reporting purposes. This initial induction point is critical in keeping accurate account of what SKUs are in inventory, how many, and also holding the delivery truck accountable for missed shipments.
Key challenges in the initial unloading process:

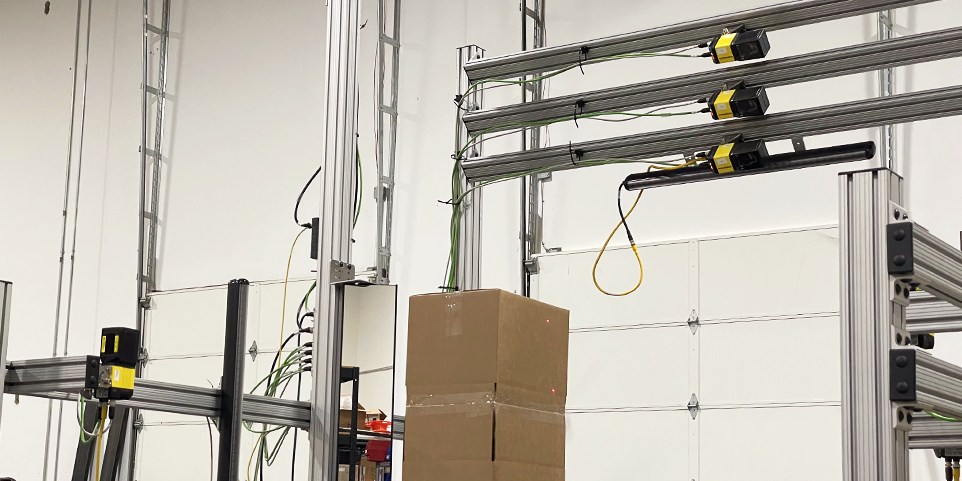

Multi-sided scan tunnels are often necessary due to unpredictable barcode placement on items coming in from the truck
Difficult-to-scan barcodes due to inconsistency – some UPC, some LPN, some inkjet while others are labels
Receiving systems need to be able to keep a count of all items received from the truck in order to match them against expected quantities
Logging scan and label data for feedback to the inventory management for delivery (truck) auditing
Receiving – Next Steps: Label, Verify, Route
Receiving Part 2: Label, Verify and Route Inbound Shipments.
The second step of a receiving system is to determine what action needs to be taken on each of the inbound items. Whether you’re unloading trailers of full cartons, mixed pallets, or individually packaged goods, the goal is to scan, label, and direct products to storage, crossdock, or staging for retail store replenishment as efficiently as possible.
For some companies, the labeling process means simply routing for a store, while others will actually weigh, dimension and manifest each product straight out to the dock in a crossdocking configuration direct to the consumer.
Other companies may simply need to put their own internal SKU tracking label on each product, and route them by product code or category.
Key actions for the receiving system:
Labeling logic for compliance vs internal routing, or crossdock manifested shipments
Exception handling – diverting all unknown, unreadable or mismatched items to QA station for individual review
Shipping – System Handoff: Scan, Label & Sort
Identify the order, gather weights, dimensions, and manifest with the carrier. Shipping automation takes over after orders are picked and packed. Systems like the Sprinter™ ensure packages are accurately scanned, labeled, and sorted to the right carrier lane based on rate-shopping and service levels.
Key features in shipping automation:
Single-sided scan tunnels with controlled label orientation
Carrier label generation via WMS, ERP, or multi-carrier software
Rate shopping and manifesting
Sortation by carrier, service level, or zone
Scanner and Labeling Design
Receiving systems need to read whatever shows up—labels on any aide, sometimes upside-down, simply due to the fact that the team unloading the truck will be moving quickly, and the varieties of product manufacturers will have barcodes in different locations on their boxes. These barcodes may be labeled, or inkjetted on. That calls for high-performance, multi-sided scanning.
Shipping, on the other hand, benefits from label consistency because the outbound process is controlled by one party, enabling faster, lower-complexity single-sided scans.
Similarly, receiving label logic varies by use case. Some cartons may need store tags, compliance labels, or shipping labels (in the case of crossdock). Outbound shipments almost always need a carrier label, triggered by LPN, order ID, or WMS handshake.
Data & System Integration
Inbound: Receiving automation often relies on pre-loaded shipment data (e.g., ASN or inbound manifest). As each item is scanned, the system verifies its identity, applies the correct label, and triggers a routing action. Real-time reconciliation helps spot discrepancies—like missing or extra cartons—early in the process.
Outbound: Shipping automation typically works off predefined orders. As soon as a carton enters the line, it’s linked to a known order. The system verifies the match, calculates shipping rates, requests a label, and routes the package to the correct carrier.
Exception Handling: Different Triggers, Same Need for Visibility
Both areas demand visibility and smart exception routing. StreamTech’s WCS enables real-time alerts, logging, and diagnostics across both systems.
Comparing Core Design Requirements:
From Receiving to Shipping: Scalable Fulfillment Starts With the Right Fit
While both receiving and shipping automation leverage scanning, labeling, and sortation technologies, their business logic diverges. One is built to ingest and validate unknown inventory; the other is engineered to confirm and dispatch customer-ready orders.
Recognizing these distinctions—and designing for them—is key to building automation that scales with your operation. Whether you’re upgrading a receiving dock or adding an outbound line like the Sprinter, StreamTech helps engineer the right fit for each phase of your fulfillment process.
Warehouse fulfillment sounds simple: Get an order, pick the order, pack and ship. What could be more straightforward?
But any veteran of the industry will tell you that warehouse fulfillment has its fair share of complexity. From scales and scanners to conveyor lines to multiple software controls, warehouse fulfillment has become an increasingly complicated and increasingly technical aspect of high-volume businesses. Automation and software have a huge role to play here, especially when it comes to SLAM (Scan, Label, Apply, Manifest).
If you’re in high-volume fulfillment, distribution, or manufacturing, SLAM is the backbone of your shipping operation—and if you’re not automating it, you’re leaving money on the table.
Demystifying SLAM: The Backbone of Warehouse Fulfillment Efficiency
For any warehouse operation, SLAM should be a comprehensive process designed to ensure every package is handled with precision. Here’s what that looks like at each stage:
Scan: Capturing Critical Data Upfront
Before a package reaches the labeler, the scan stage ensures that every shipment is identified, measured, and verified in real-time. Using in-motion scales, high-speed barcode scanners, and machine vision systems, the SLAM process captures essential data such as weight, dimensions, serial numbers, and IMEIs. This early quality control step is crucial—if the system doesn’t have an accurate read on a package before labeling, it risks downstream errors that can cause misroutes, delays, or compliance failures.
Scanning isn’t just about reading a barcode; it’s about verifying accuracy at the first possible touchpoint. If a package is missing required data, flagged as overweight, or doesn’t match what the warehouse management system (WMS) expects, the SLAM system can trigger exception handling workflows before the package moves further down the line. Unlike manual inspections, which can be slow and inconsistent, this automated QC can quickly verify correct fulfillment (or redirect errors) at high throughput speed, all while keeping records of the task.
Print and Apply: Labeling at Volume
In high-volume fulfillment, print and apply labelling systems are indispensable for ensuring accurate, efficient labeling. Labelers should be specified in terms of hourly, peak hourly, and daily throughput. In higher-speed systems, it is wise to use redundant labelers; a good SLAM system should be able to recognize that a labeler is either having a problem or it’s out of consumables, taking it offline and adjusting the flow of items to other labelers.
All this said, good print and apply labeling systems do more than just affix a shipping label—they play a critical role in processes such as compliance labeling and piggyback labeling, both of which are essential for meeting retailer and carrier requirements while optimizing workflow.
Compliance labeling is one of the biggest challenges in modern distribution. Whether shipping to Amazon, Walmart, or other major retailers, warehouses must meet strict labeling specifications that dictate placement, barcode clarity, and content. Failure to comply can lead to chargebacks, shipment rejections, and costly delays. Print and apply systems automate this process, ensuring that every label is precisely applied and meets compliance requirements without the risk of human error.
Another increasingly popular application is piggyback labeling, which allows for a secondary removable label to be applied over a primary label. These dual-layer labels are commonly used for returns processing, inventory tracking, and promotional inserts. With e-commerce returns at an all-time high, many retailers now require return labels to be integrated directly onto outbound shipments. Instead of separately printing and inserting return labels, a print and apply labeling system can automate piggyback labeling, reducing manual labor and increasing fulfillment speed.
Beyond compliance and piggyback labeling, there are several advanced labeling techniques that add value in specific operational contexts. For instance, double-sided pack slips use two print engines to print on both sides of the label media. This method minimizes material usage and maintains high throughput (though it offers limited space for descriptive text—a trade-off when dealing with complex orders, such as those in the aerospace industry).
Another technique is the folded pack slip, where the label is printed on one side and then folded underneath. This approach provides more real estate for longer product descriptions and documentation, though it may run slightly slower than double-sided printing. Additionally, there’s the loose thermal print, which gets tucked underneath a label and can print multiple sheets for additional documentation or proofs of fulfillment.
By integrating print and apply systems with warehouse management software (WMS) and carrier manifesting systems, warehouses can eliminate labeling bottlenecks, minimize mislabeling risks, and scale efficiently from hundreds to hundreds-of-thousands of shipments per day.
Manifest: Ensuring Accuracy Before Shipments Leave the Dock
Once a package is labeled, the package must be uniquely identified and connected to its shipment data. This manifest step ensures that all shipment data—including weight, dimensions, and tracking information—is verified, recorded, and transmitted to the carrier. Errors in the manifest stage can lead to costly misclassification errors or Dim Weight discrepancies that could result in chargebacks.
To automate the manifest stage, SLAM software needs to integrate with in-motion scales, integrated dimensioners, and high-speed barcode scanners to capture data in real-time, ensuring every package meets carrier requirements before it leaves the facility. Exception handling logic within SLAM software can flag weight mismatches, incorrect labels, or missing data before a package reaches the sorter, allowing for quick resolution.
Many shipping networks require real-time electronic manifest submission—if this step fails, packages might sit at the dock instead of making their scheduled departure. By integrating the warehouse control software (WCS) that runs the SLAM equipment with warehouse management (WMS) and transportation management systems (TMS), facilities can automate carrier selection, ensure accurate billing, and reduce shipping delays.
One crucial tip, from experience: Meticulously document the interface between your SLAM system and your transportation management system (TMS). This documentation isn’t just a formality—it’s your roadmap for future upgrades or vender changes. By clearly outlining how data flows between your SLAM software and TMS, you ensure that any adjustments or integrations can be made smoothly without unexpected downtime.
Sorting: A Final Opportunity for Automation
Once a package has been scanned, labeled, applied, and manifested, there might also be a final step of sorting packages along various lines. So it is worth including a little bit about sorting here.
Why sort? The most obvious reason is to separate shipments by carrier, ensuring that UPS, FedEx, USPS, and regional carriers each receive the correct packages. But there are opportunities that go well behind sorting by carrier: A well-designed SLAM system can integrate sorting logic into the broader automation strategy, allowing for highly intelligent, multi-layered sortation based on operational needs.
For example, advanced sorting systems can route packages based on:
Pick zone routing: Streamlining downstream handling based on where an order was picked.
Zip codes & service levels: Prioritizing expedited shipments and optimizing delivery routes.
Exception handling: Flagging no-reads, misapplied labels, or packaging errors before they cause delays.
International shipments: Sending flagged orders for customs documentation processing.
Value-added service areas: Routing orders for special handling, such as gift wrapping or bundling.
Packaging technology channels: Differentiating between bags and boxes for downstream automation.
The Future of SLAM…and Why You Should Care
Automation is the future of supply chain efficiency. AI-driven predictive logistics, machine learning, and robotics are transforming how warehouses operate. Labeling automation is no exception.
Companies that invest in SLAM automation today will be the ones that win in high-speed e-commerce tomorrow. When every second counts in fulfillment, manual labeling isn’t just inefficient…it’s a liability.
To truly harness this potential, it pays to partner with a SLAM professional who can provide a tailored plan for handling exceptions, whether it’s international shipments, product handling quirks, or connectivity issues. A provider with dedicated support and ready spare parts ensures your system remains reliable and scalable, keeping your operation running smoothly as you embrace automation for the future. If you feel you are at that stage, it’s probably time to talk to one of our engineers.
Straight from ProMat 2025: Bob Miller Talks SLAM Integration
Since the late 1990s, eCommerce has evolved from a novelty into a dominant force in global retail, driven by advancements in secure online payment systems and logistics technology. As consumers prioritized convenience and cut back on trips to physical stores, businesses responded with more advanced e-comm stores, and increasingly automated fulfillment operations to keep pace with rising demand.
This shift has accelerated the adoption of robotics, advanced inventory management systems, and high-speed order processing, making fulfillment faster and more precise. In this post, we’ll examine the latest innovations in warehouse automation and their impact on the future of e-commerce.
What’s Driving Warehouse Fulfillment Automation in 2025
In 2025, warehouse operators must adapt to rapidly changing customer expectations and technological advancement or risk falling behind. Here are the top trends shaping the future of warehousing:
1. Robots & Their Implications On Picking Speed & Storage Density
Shelf-To-Person/Goods-To-Person Picking
The warehouse fulfillment automation industry was caught off guard in 2012 by Amazon’s acquisition of Kiva Systems for about $775M. Since then, many companies have tried to fill the gap and have developed new innovations.
As automation is expected to see more widespread use in 2025, many businesses are taking small, targeted steps to enhance their operations. Mobile shelving—also known as shelf-to-person or goods-to-person picking—is set to become more common. These robotic systems can move physical shelving within the warehouse, bringing items to the picking staff, offering a practical way to boost efficiency without overhauling entire systems.
This advanced approach utilizes automated mobile robots (AMRs) to bring inventory shelves or pallets directly to centralized picking stations. By removing the need for humans to traverse the aisles retrieving items, shelf-to-person systems “check all the boxes” for the challenges that warehouse operations professionals are looking to solve:
Reduce reliance on manual labor – Goods-to-Person robotics automate the retrieval and delivery of items, significantly decreasing the need for manual walking, lifting, and searching, allowing employees to focus on higher-value tasks.
Accelerate picking speeds – By bringing inventory directly to the operator, these systems eliminate travel time within the warehouse, enabling faster order fulfillment and reducing bottlenecks in high-demand periods. The software also slots multiple picks per rack presentation, further increasing pick speed and efficiency.
Minimize errors – With precise robotic handling and software-guided picking, the chances of human errors, such as mispicks or misplaced inventory, are greatly reduced, ensuring higher order accuracy.
Maximize storage density and efficiency – Robots travel beneath the racks, eliminating the need for aisles and allowing for a higher concentration of storage locations within the same square footage. By dynamically rearranging inventory based on demand, they further optimize vertical and horizontal space, maximizing warehouse capacity without requiring expansion.
Powered by software intelligence that directs the robots, handles the slotting of the racks according to priority, and manages the flow of orders through the system, these systems are able to increase pick speed by achieving multiple picks per rack presentation to the operator. The bots operate continuously, adapting to changing demands in real time, re-arranging the racks according to order volume and seasonality.
By taking this focused step toward automation in 2025, businesses are addressing rising order volumes and labor challenges while positioning themselves for long-term success.
2. The Power Of A Solid Warehouse Software Stack
ERP + WMS + TMS + WCS
Seamless integration between ERP, WMS, TMS and WCS software ensures real-time data flow, enabling optimized inventory management, efficient order fulfillment, cost-effective transportation, and synchronized warehouse automation for maximum operational efficiency.
Getting this software stack right is becoming increasingly important. The ERP (Enterprise Resource Planning) system centralizes business data, providing accurate inventory and order information that feeds into the WMS (Warehouse Management System) for precise stock tracking, picking, and storage optimization. The WMS then communicates with the TMS (Transportation Management System) to ensure efficient shipping decisions based on order destinations, carrier rates, and delivery timelines. The TMS works alongside the WCS (Warehouse Control System) to synchronize material handling automation, such as conveyors and sortation systems, ensuring seamless movement of goods from storage to outbound shipping.
While businesses have relied on Warehouse Management Software (WMS) for years, forward-thinking managers are now choosing software that works more precisely for their unique operations. Enter Warehouse Control Software (WCS): the brain of modern fulfillment.
Unlike WMS, which provides high-level inventory management, StreamTech’s Warehouse Control System (WCS) Software serves as the central hub of your fulfillment automation, seamlessly integrating and synchronizing various material handling systems within your warehouse.
By acting as an intermediary between hardware automation equipment, control systems, and your order database, it ensures real-time management of operations such as picking, packing, shipping, and sortation. This centralized control facilitates efficient data flow and coordination enhancing overall operational efficiency. Additionally, StreamTech’s WCS software offers real-time monitoring capabilities, providing immediate insights into system performance and potential issues, which is crucial for maintaining smooth and efficient warehouse operations. StreamTech’s WCS, for example, offers:
Real-Time Oversight: Constantly monitors equipment and processes, providing alerts and live updates for seamless operations.
Dynamic Adjustments: Adapts workflows on the fly by modifying sortation rules, updating label templates, or redirecting printer signals.
Integrated Insights: Logs every order and tracks performance metrics through dashboards and reports, helping warehouses identify inefficiencies and optimize processes.
This year we are seeing more warehouse operators seeking a solution for more stringent demand forecasting, inventory control, and supply chain transparency. Software is the answer.
3. Dimensional Accuracy: The Key To Smarter Fulfillment
For Inventory, Packaging, And Shipping
We can’t predict how the economy will shift this year. That’s why this is the year to focus on what you can control: Precise dimensional (DIM) weight measuring. While it might seem like a small detail, getting accurate measurements of your packages for shipping can have a surprisingly large impact on your bottom line.
Dimensional Accuracy In Inventory
In a fulfillment automation warehouse, dimensional accuracy is key to optimizing storage, slotting, and order processing. Precise measurements ensure the WMS allocates space efficiently, preventing wasted capacity and incorrect packing decisions. Inaccurate dimensions can lead to delays, increased costs, and potential product damage.
Cartonization and Right-Size Packaging
Cartonization selects the optimal box for an order, reducing waste, shipping costs, and packing time. Right-size packaging ensures products fit securely while minimizing material use. Automated systems improve this process, enhancing efficiency and sustainability by lowering excess packaging and shipping volume.
Advanced right-size packaging systems, such as trey erectors, random carton erectors, or robots that select the appropriate carton based on the order, take this a step further by constructing boxes to fit the exact dimensions of the items inside. These systems eliminate the need for excess void fill, reduce material costs, and optimize dimweight for shipping. With growing environmental concerns, legislation may soon require businesses to use packaging that closely matches product dimensions, pushing fulfillment centers to adopt automated right-sizing solutions to stay compliant and cost-efficient.
Dimweight For Outbound Shipping
Dimensional Weight (dimweight) affects shipping costs, as carriers charge based on volume, not just weight. Oversized boxes increase fees, making dimweight optimization crucial. Accurate dimensions and automated cartonization help minimize costs, ensuring efficienct, cost-effective shipping while maintaining package integrity.
By automating DIM weight calculations, businesses can leverage thorough data, eliminate human error, and move faster. Equipment like StreamTech’s Sprinter™ can scan, weigh, measure dimensions, and print and apply labels for between 600 and 1,000 boxes per hour, without making a mistake. This level of automation allows you to:
Reduce Costs: Optimize DIM weight to avoid overpaying carrier fees.
Avoid Chargebacks: Eliminate penalties from inaccurate or incomplete data.
Boost Efficiency: Automate processes like scanning, weighing, and labeling.
Optimize Packaging: Minimize wasted space with smarter cartonization.
In 2025, leading businesses are taking control of the aspects they can, and DIM weight automation is a simple, yet powerful, first step.
4. The Rise Of Personalized Order Experiences
Last, But Ultimately The Most Important
All of the above trends are designed to accomplish our last trend – delightful experiences for the end customer. Each year brings an increased demand for, and ability to, customize each shipment for the end customer. Personalization in packaging, shipping, and delivery is no longer a luxury—it’s a driver of customer satisfaction and loyalty. Leveraging subscription box packing software, warehouse technology, and data, businesses are enhancing the unboxing experience in 2025.
Branded packaging and personal touches, for example, create memorable unboxing moments. Right-sized packaging machinery with inkjet printing can feature logos, colors, and custom messages, while automated systems add personalized notes or full-color inserts that make customers feel valued.
Loyalty program integration takes engagement further by including QR codes or labels on packaging that link to loyalty accounts. Customers can check points, redeem rewards, and access exclusive offers. Inserts highlighting member-only events or benefits enhance exclusivity and encourage repeat purchases.
Product information inserts build trust by offering usage tips, care instructions, or brand stories within the packaging. These additions educate customers and deepen their connection to the brand.
Personalized delivery windows add convenience, especially for subscription services. By integrating advanced Transportation Management Systems (TMS) with customer data, businesses can offer flexible delivery schedules tailored to individual preferences.
In 2025, customers are no longer viewing customization as an enhancement; it’s an expected component of a meaningful customer experience.
Moving Forward With Warehousing Innovation
Warehouse fulfillment has always been a center of innovation, and in 2025, the pace will only accelerate. By embracing automation trends such as DIM weight optimization, shelf-to-person picking systems, Warehouse Control Software (WCS), and personalized order fulfillment, businesses can stay ahead in an increasingly competitive e-commerce landscape.
StreamTech is at the forefront of these innovations, helping businesses implement cutting-edge solutions tailored to their specific needs. Ready to embrace the future of warehousing? Contact us today to discuss how we can help you stay competitive and efficient in a rapidly changing market.
In warehouse fulfillment, regardless of whether the customer’s order contains car parts, jewelry, books, or medical instruments, order accuracy is the number one priority. Delivering an accurate order to every customer is the baseline for measuring success in fulfillment. It is the essential foundation upon which everything else is built. The second priority that follows closely behind accuracy is fulfillment speed. As operations ramp up with peak season or company growth, order accuracy becomes much more challenging because of the sheer volume of orders that need to be processed.
Any process involving human operators carries the risk of errors. This is the same with warehouse fulfillment operations. With manual fulfillment, orders could be picked incorrectly, contain an extra item, have the wrong label placed on the box, or be sorted to the wrong carrier.
Automation reduces errors by ensuring consistency and eliminating human mistakes. We rely on tracking orders and SKUs with unique barcodes. We track the progress of every order along the conveyor using induct verification scanners and perform parity checks at each stage of the fulfillment process. For engineered automation systems, we aim for over 99.5% accuracy, while attempting to operate at a high rate of speed (typically between 15 to 60 CPM).
Even with fulfillment automation, inaccuracies can still occur. Customers can still get the wrong items, or carriers can lose them in shipment. Without much recourse or proof other than scan data, warehouse leaders have a hard time proving they fulfilled the package accurately. But now, with unique vision camera systems we can.
Introducing StreamTech PackSight™ Camera Capture System:
StreamTech Engineering developed a camera vision system called PackSight™. The PackSight™ system does more than just capture images—it records high-resolution pictures of each completed order, whether open or sealed, as it moves along the conveyor. These images are then logged in a searchable database by the LPN (order ID).
Here are some ways this technology can enhance your operations:
Customer Service Insights: Provides data to customer service teams. In case of a complaint, operators can search the LPN database to verify whether an item was picked or not.
Carrier Accountability: Direct images of outgoing packages and contents help trace discrepancies to the carrier.
Internal Pick & Pack Auditing: Tracks accuracy in the pick and pack process using image capture and future machine vision capabilities.
Closed Box Imaging: Captures images at key stages like case sealer exit, label verification, and post-sort for damage claims.
Works well for both open box (pick audits) or sealed package (missing/damaged claims)
Images are saved to a mass storage system and indexed by scanned barcode data
Can perform binary package classification
Pairing The Image & Order Data: It’s More Than Just A Camera
You might ask, “Why not just use an IP camera to track my orders?” While a traditional camera can capture images of the items and shipping labels, the real challenge lies in organizing and tracking this data. For example, if you need to find an order labeled at 11:45 p.m. on January 3rd, you’d have to sift through hours of footage, which could include over 900 boxes if your operations runs at 15 cartons per minute. Searching through this footage wastes valuable time and effort. With PackSight™, that hassle disappears. Images are automatically linked to each order, allowing you to pull up the exact information you need in seconds. No more searching, no more guesswork.
The PackSight™ is a revolutionary system that offers more than just image capture. At StreamTech Engineering, we read the License Plate Numbers (LPNs) of each order, enabling precise tracking throughout the fulfillment process. As your order moves through each stage, the LPN is scanned and instantly communicated back to your Warehouse Management System (WMS). PackSight™ scans and logs each order by its unique LPN, giving you real-time images of open and closed cartons, as well as the shipping label details.
At StreamTech, we’re committed to enhancing efficiency and order accuracy in e-commerce fulfillment. We specialize in crafting tailored solutions that address core operational challenges, seamlessly integrating into your workflow. Through expert guidance and innovative engineering, we’ve helped countless businesses streamline their processes and improve both reliability and speed within their supply chains.
Ready to revolutionize your fulfillment process? Discover how PackSight™ can streamline your operations, improve accuracy, and elevate customer satisfaction.
Your Warehouse Fulfillment Operation Can Unlock Revenue:
There are many reasons why a business might have a slow year, but rarely does corporate management think to look at warehousing and fulfillment as the bottleneck holding the business back. Instead, often times leaders point to slow sales or reduced product moving through their store (e-comm or physical). But a warehouse bottleneck may be precisely what is happening in a vast majority of companies today, especially in eCommerce.
The steps of warehousing storage and fulfillment are, after all, the final steps in preparing a product for a consumer. Thus, they set the “pace” for the rest of the company. A slow and inefficient fulfillment process will mean a cap on just how big a company can grow (or, how costly it will become when demand begins to outstrip capacity). Lack of the ability to bring on new products (where will they be stored, how fast will we be able to pick them?). An inability to market them – what if the next promotional marketing turns out to be a huge success? Will your warehouse keep up? In today’s social media driven online environment, what if an influencer picks up your product? Will your warehouse be ready? Or will your warehouse become a bottleneck?
This is perhaps the greatest argument for automating warehousing and fulfillment: It removes many of the barriers that are quietly, invisibly, preventing the business from growing. The good news here is that removing those barriers does not take a giant investment. Often, warehouse managers can get a huge ROI simply by automating a few key critical steps.
Warehouse Automation Can Seem Cost Prohibitive…Until You Crunch the Numbers
Many warehouse managers have stated that they have big plans for incorporating warehouse and fulfillment automation, especially as companies continue to face a difficult labor market, shrinking margins, and warehouse bottlenecks. But costs (and relatedly, ROI) have been one of the biggest barriers to automating warehouse functions…which means that many businesses are, unintentionally, stifling their own growth.
On the cost side of things, there is not only the up-front cost of machines themselves, but also costs associated with re-designing workflows, setting up new machines and new systems, and maintaining everything once up and running. For most warehouse automation projects, those costs are balanced against the incremental gains in efficiency that a bit of automation brings about (for example, less time and manpower spent picking, sorting, packing, measuring dimensions, etc.)
But there are also costs associated with missed opportunities. In our experience, a failure to automate doesn’t just mean that warehouse functions appear a little more expensive on a spreadsheet. Manual processes can be a bottleneck that prevents scaling, flexibility, and efficiency…and thus stifles growth.
“Scaling Manually” is an Oxymoron
Automated processes are much easier to scale. Take labor as an example. Suppose your warehouse needs a crew of 20 people to handle picking, packing, and fulfillment of 2,000 orders a day. For a while, this may seem workable. But what happens when the business grows and now needs to handle 4,000 orders a day? This level of growth is common – so do you double the staff, double the overhead cost? It simply is not financially economical to double the staff—and even if you did, you would now need more space, more managers, more training, more complexity in the work schedule, and so on.
On the other hand, not doubling staff means a reduction in throughput. Those 4,000 orders will take at least two days, putting you a day behind schedule every day. Pretty soon, the warehouse will be overwhelmed, and you will not be meeting your customer expectations, or if you fulfill on behalf of others, you won’t meet your SLAs.
With automation, you can take time-consuming tasks and not only do them more quickly and efficiently but also scale them easily when necessary. For example, with an automated system that has a predetermined throughput rate (e.g.: 15 orders per minute, or 7,200 per day), now the Business Development team has the freedom to pursue new products or new accounts, with a solid understanding of just how much the fulfillment center can handle in a day.
Flexibility is Impossible When Manual
While scale has to do with long-term growth, flexibility has more to do with the ability of a warehouse or fulfillment center to adjust to more short-term or local conditions.
A great example of this is seasonality. An eCommerce business that sells products that are popular as gifts will likely see a surge in orders around the holidays. That surge necessitates bringing in additional labor. As the warehouse grows, this added need gets greater. But onboarding a fresh crew at those seasonal spikes is not a sustainable growth strategy.
Flexibility is not always seasonal, though. A warehouse might also need to adjust if it launches a new product line, forms a new partnership, or offers a new service (for example product kitting). Such adjustments take time and resources to implement, and decision-makers must consider the trade-off between those adjustments and the new venture’s profitability.
How does a manual operation deal with these changes? The best they can do is hire and fire additional labor in waves. That’s not true flexibility.
…which brings us back to automation. If adjusting to seasonal demand or a new product launch simply becomes a matter of entering a few additional parameters into the control software for a set of machines, the cost of pivoting is now much lower. Business leaders are freer to pursue these new ventures without worrying so much about how the warehouse is going to pivot to accommodate them.
For flexibility: A great example of how automation adds flexibility, let’s look at picking. StreamTech’s VelocityPick™ pick-to-light systems are designed to allow companies to add SKUs to their picking process as much as necessary without increasing the complexity of the pick process for each operator. The automation scans each order and directs each picker which bin location to pull from – the operator doesn’t have to know where specific SKUs are stored. They simply need to look for a light. This gives businesses the ability to rotate SKUs seasonally, slotting different items in and out as much as desired, without adding complexity to the pick process or slowing it down at all.
Hidden Resources, Hidden Efficiencies
Efficiency simply means doing something more quickly and accurately with fewer resources. But some efficient processes also free up resources that can be used downstream.
For example, take Goods to Person Picking. Instead of a human picker traveling down aisle after aisle, this automation uses mobile shelving that moves atop picking robots. These robot travel around and pick up each shelf, then bring the shelves to the picker. The obvious benefits of this type of automation are the increased picking speed and efficiency. The hidden side-effect of this is an increase in the storage density of the facility. Goods to Person robotic picking removes the need for wide aisles to accommodate carts, pickers, and pallet-jacks, as the robots move under the shelving units. Shelving units only needs enough space to slide past each other. This is just one of many examples of how automating can solve warehouse bottlenecks.
Simply narrowing aisles has been shown to free up around 20% of warehouse floor space, and some estimates suggest possible savings of 50%. So imagine the space that could be saved with virtually no aisles! What would you do with 50% more warehouse space? This is space that can be used for new activities (kitting, for example), or to add new product lines (or for 3PLs, new customers).
Thus, automation can often reveal additional “hidden” resources and efficiencies, such as increased storage density of the facility…all without the need to expand the warehouse or acquire another.
The Good News: Automation Can Resolve Warehouse Bottlenecks and Demonstrate ROI Quickly
There is one additional reason why automation is linked with costs: It is the mistaken idea that automation means adding large, complicated systems to the warehouse. While it can mean this in some cases, automation can be simple, too.
Sure, many warehouses are automating by adding small armies of picking robots and moveable shelves, all operated by a central software system. But that is a fairly advanced level of automation. Many smaller-scale automation projects realize a positive ROI much faster and can solve warehouse bottleneck issues.
Take the simple steps of measuring the dimensions and weight of a packed box and then printing and applying the appropriate label for carrier pick-up. These are all functions that can be done easily and automatically with StreamTech’s end of line Sprinter™, which can process about 15 cartons per minute. At that rate, the system can finish about 7,200 cartons in a typical 8-hour shift (with no breaks, naturally!)
While not as exciting as a small fleet of robots, the Sprinter™ fits the bill for automation: It can scale easily as the fulfillment center grows, it can work flexibly, and it frees up not only labor but also space that would otherwise be needed for people to sort, measure, and label packages. And this is just one example of a “small scale” automation that can realize an ROI much more quickly—typically in the first year or two.
Re-imagine what your warehouse can do! StreamTech Engineering believes that efficient warehouse fulfillment is a pivotal part of any successful business. We are passionate about designing and implementing practical, cost-effective fulfillment automation systems that deliver a return on investment for our customers. Our goal is to change the way companies perceive their warehouse, making it a key to their ongoing success and growth.
While there are a lot of elements to running a distribution warehouse—labor, accuracy, speed, costs—at the end of the day, it is a business controlled almost entirely by dimensions. The dimensions of the space in your warehouse, of the items in your racks, down to the dimensions of each box, and even the dimensions of the truck that takes each order away…all of these need to be measured accurately in order to plan effectively.
In other words, controlling these elements is critical to running a successful distribution and fulfillment center, and if not kept in check, you’ll find these dimensions controlling you. What do we mean by this?
Take something simple, like packing and shipping. At first glance, it might appear that little can be done about costs here: Customers today expect free shipping, and yet carrier costs are significant, even when everything runs smoothly. Problems like inaccurate measurements of dimension and weight, or using the wrong packaging, can incur stiff penalties…making shipping even more expensive.
While you might not have much control over the dimensions or weight of your products, getting accurate measurements of your packages for shipping—that is, getting a handle on the dim weight—can be a surprisingly effective way of controlling hidden shipping costs and chargebacks. This is made possible through the use of automated DIM weight equipment.
Understanding Carrier Costs and DIM Weight
To understand where some avoidable shipping costs are hiding, it helps to review how DIM weight works.
Dimensional weight (DIM weight) is a method of pricing based on measuring a package’s volume in relation to its actual weight. Carriers adopted DIM weight as the standard for shipping charges to optimize the space in their vehicles.
DIM weight is calculated with a simple mathematical formula:
(length X width X depth) / DIM divisor
The DIM divisor, also called the DIM factor, is a value set by carriers and represents cubic inches per pound. For example, the current DIM divisor for UPS and FedEx is 139, while the DIM divisor for USPS domestic priority mail is 194.
Thus, DIM weight is determined by getting the volume of the package (based on its dimensions) and then dividing by the DIM divisor, which is then rounded to the nearest whole number. Charges are based on the resulting DIM weight or the actual weight, whichever is greater.
Example: A box measuring 10” X 12” X 8” has a DIM weight of 7 pounds. (10 X 12 X 8)/139 = 6.9, rounded to 7. Pricing is based on 7 pounds, even if the actual weight is less. However, if the actual weight is 8 pounds or more, pricing is calculated by that number.
Carriers use DIM Weight because it affects how much cargo they can plan to carry in their trucks (planes, etc.). Reporting the dimensions of a package to the carrier is a key to their efficiency, and so they set up incentives to do this accurately. (This is also an argument for why you need a multi-carrier TMS that can connect your fulfillment systems.)
All that said, there can be more to your overall shipping bill than simply DIM weight charges. This is especially true for warehouses that work at scale: A few dollars per shipment might not make a difference when sending a dozen packages in a day, but when sending hundreds or thousands, small fees and pricing inefficiencies add up quickly.
1. Avoid Chargebacks
If a company records the wrong dimensions or weight on an outgoing package, or only lists dimension or weight but not both, two things can happen: The carrier will adjust the base charge accordingly using DIM weight, and they may also charge an additional fee (chargeback) per parcel that has missing or incorrect information. (Note that the process of correcting this can potentially delay the shipment, too.) Relying on your vendors’ inventory master lists for dimensions and weight can be problematic here—if their data is wrong, you could be paying for their mistakes! (Again, not having control of your dimensions means you will find these dimensions controlling you.)
Fee amounts vary by shipper and fluctuate over time, but range from about $1 per package to 5% or 6% of the amount of the price adjustment. Regardless of how they are calculated, chargebacks can accumulate fast as throughput increases.
We integrate dimensioning cameras and light curtain dimensioning systems into our shipping systems regularly.
For all but the smallest companies, trying to accurately measure and weigh packages by hand is a non-starter. The most basic advantages of adding DIM weight machines are that they provide thorough data and eliminate human error. They can also go much faster than any manual system. Equipment like StreamTech’s Sprinter™ can scan, weigh, measure dimensions, and print and apply labels for between 600 and 1,000 boxes per hour, without making a mistake.
2. Right-Size Packaging
Another source of unexpected shipping fees is a handling surcharge for packages that exceed size or weight limits, or that are not in a squared box. For example, boxes heavier than 50 pounds, or measuring more than 48 inches on the longest side, can trigger surcharges of hundreds of dollars from FedEx.
While the size of parcels can’t always be controlled, making sure to use the smallest box possible will help. We’ve all laughed when a huge box arrives at our doorstep, with one small item inside, accompanied by lots of void fill. This is obviously not efficient.
In many fulfillment operations, the selection of the right box size (called cartonization) is left up to an operator’s sole discretion during the packout process. A material handling systems integrator such as StreamTech, can use a cartonization algorithm integrated right into our Warehouse Control System software (WCS) and take this guesswork out of the process.
Ideally, various types of packaging equipment should be integrated which can build a box on-demand to match the size of each order. Some systems employ complex machines to build a box around each item; others build a cardboard tray, then add a lid, and still others employ robotic arms to select each box. StreamTech Engineering can work with you to help find the right equipment for your operation, all designed to control the dimensions of each box.
Automating these processes also gives managers the tools to make better, more cost-effective packaging and shipping decisions. Perhaps orders might be split into two or more cartons so they’re not overweight, disassembled to fit in a smaller box, or more suited to an alternative packing material like a padded envelope.
Optimizing cartonization eliminates wasted space in each parcel and minimizes the DIM weight—and therefore shipping charges. You’ll know ahead of time that something is heavy enough or big enough for surcharges to kick in, instead of being surprised with an invoice.
3. Rate Shopping By Carrier
Another way that automating DIM weight helps the bottom line is by allowing carrier rate shopping in real time.
Carriers differ in their pricing models and requirements, and fees change frequently. StreamTech’s WCS software has the ability to integrate with multi-carrier TMS software. Together with accurate, automated DIM weight data, the warehouse system can automatically scan the various shipping options available, choosing the carrier that offers the best price (along with other criteria, like on-time records and return stats). Once chosen, the system can create and affix the appropriate label, further streamlining the process.
Over time, this kind of rate shopping will allow your fulfillment center to find ways to use your annual carrier spend more efficiently, and without massive manual intervention.
Take Control of DIM Weight Before It Takes Control of You
Fulfillment centers live and die by dimensions; taking control of their measurement and use means controlling a large part of your costs. Here we’ve seen how automating DIM weight calculation minimizes the human error in weight and dimension estimation, allowing companies to avoid unexpected surcharges and maintain more predictable shipping costs. Additionally, the real-time rate shopping and automated labeling eliminate time-consuming steps, freeing warehouse staff to focus on higher-value tasks. StreamTech’s WCS software ensures that each shipment meets carrier specifications for both price and performance, enabling consistent, cost-effective delivery and enhancing customer satisfaction.
And while measuring DIM weight may not seem like a top priority when deciding how to automate your warehouse, implementing dimensioning equipment can have a relatively large impact. When every package can be scanned, weighed, and measured efficiently, ensuring that only accurate information is provided to the carrier, things like chargebacks, special handling fees, and bad packaging decisions become a thing of the past.
Fill out the form below or call us to discuss how StreamTech can help.
For any successful fulfillment automation system to operate properly, the equipment must be able to uniquely identify each package. This identifier may be a License Plate (LPN) (for a pick-pack application — most common in fulfillment), it could be a Tracking Number (receiving applications), a Work Order (manufacturing), or a UPC (bulk shipping). Since a hand scanner is relatively inexpensive but fixed (automated scanning) can be somewhat tricky.
Barcodes may be 1D, or 2D: 1D codes have a series of variable width lines using symbologies like Code 128, Code 39, or UPC. 2D codes are made up of a checkerboard-like pattern. For example, a QR code is popular for scanning with a smartphone. Other 2D codes include Datamatrix and Maxicode. 2D codes can hold a lot of data so they are great for a weblink or even maintaining explicit information.
For pick-pack applications, we just need to essentially serialize the orders over a time-slice of perhaps a few days or weeks. Thus 6-9 digits is usually plenty of length and that’s what we’ll focus on for “License Plate” (LPN) applications.
Implications Of Label Placement
Understanding the purposes of the LPN and the types of barcodes used, we can dive into the details about why their placement is so important. Once that LPN barcode is read, the automation can begin to assign attributes to the order, such as weight and dimensions. This allows us to print and apply shipping labels accurately and ultimately report on the shipped status, sort location, and other data. We call this the “induct” scan.
Performing the induct scan requires the placement of a scanner along a side of the conveyor where the LPN will be located – typically to read the LPN on one side of the package. Consistent placement and alignment go a long way toward successful automation, saving you cost on unnecessary scanning equipment. Consistent LPN placement will reduce the number of scanners or cameras necessary to read a label.
In some cases, it could even allow you to reduce the number of redundant labelers. In a recent project, we were able to eliminate the need for a side-applied carrier label. The customer had requested a top-applied labeler and side-apply as well. However, we got creative – by instructing the operators to place LPNs on the front face of their packages, and induct packages on their side, we could use just one top-apply labeler, and accomplish both goals. A little bit of human cooperation goes a long way. The cost savings can be significant, and is only possible through cooperative owners and operators.
If the operator is unable to place the LPN in a consistent location, we add scanners to read each side, and each scanner adds to the equipment cost and programming complexity of the project.
(5-Sided Scan Tunnel on Left; 2-Sided Scan on Right)
Sure, We Can Do It; But Are You Sure You Want Us to?
Ultimately, if you are unable to control the placement of your LPN’s, or the orientation of your packages along the conveyor, our engineers can design systems that can read 5 (or even 6) sides of your packages, at any location. These are called scan tunnels, and involve about 10 specialized oscillating mirror scanners, as well as large fixed mirrors to ensure coverage across the entire package. It could theoretically even incorporate a between-roller scanner to capture labels on the bottom. The cost of a barcode scan tunnel over the cost of traditional one-sided or two-sided package scanning technology can be as much as a tenfold factor (or more), so it can be best to consider a compromise to bring consistency to the label placement, where practicable.
However, there are a variety of high-volume situations where many-sided automated scanning tunnels may be necessary. Situations where you are unable to control the location of the LPN, such as when utilizing only the manufacturer’s UPC label on the outside of the package. Some labeling applications utilize the WMS database and rely solely on the UPC.
Applications Where Multi-Sided Scanning may be necessary (generally in higher volume, very automated scanning facilities):
Cross-Docking: scanning-in product UPCs straight from the dock door, from the manufacturer or supplier, weighing, dimensioning and labeling it straight for outbound carrier shipment, conveying to another outgoing dock, with no product storage.
Inbound Receiving: scanning-in product UPCs or carrier labels straight from the carrier’s truck for inventory storage.
Package Variation & Odd Shapes: in some instances, products are simply such a wide variety that a scan tunnel can be the most efficient way to account for all the variety. A combination of flats, bags, padded mailers, wide package size variety, and shrink-wrapped products could result in the need for a scan tunnel.
Often, the best way to meet the efficiency and ROI you are looking for is through some automation, combined with operator consistency as well. StreamTech’s applications engineers will work with you to define the scope of your project and provide recommendations about automated scanning for practical savings opportunities when possible.
Why is a package inspection system important? In fulfillment automation, the integrity of the box is critical to the success of the automation, particularly with regard to dimensioning, labeling, conveyance, and sortation. We look for ways to add value to both our existing customers as well as new ones, and our controls and software engineers regularly explore new technology to solve problems.
Poor box integrity causes a variety of problems for the rest of the fulfillment automation process, so we have invested in research and technologies that can allow us to catch problems early.
What Are The Implications Of Poor Box Integrity?
Let’s look at an application such as our Sprinter™ dimension, weigh, scan, print, and apply labeling systems (also referred to as a SLAM system). These are integrated downstream from either a case erector, taper, or some other box right-sizing system (or a person).
To proceed successfully through these processes, the box must be properly closed. Poorly taped or glued boxes create issues with print-apply and dimensioning systems – for example, label adhesion, and incorrect dimensions. Boxes were getting labeled and sorted correctly, but (if not caught by operators) the contents of the box were being spilled out somewhere during shipment, leaving customers obviously unhappy.
Some Other Implications Of Poorly Constructed Boxes Could Include:
Loss of contents during conveyance, sortation, or shipment
Wasted time chasing down inaccuracies
Incorrect label application
Damage to the order contents or the labeler’s tamp during application
Bad dimension data due to interference with major/minor flaps (incorrect box height), which would cause incorrect multi-carrier rate shopping, costing you money
In order to catch these errors before they become such a big problem, we employ specialized sensors which integrate with the Sprinter’s WCS software, to detect these problems and prevent them from costing you money. Let’s explore how it works.
How Does This Technology Work, And How Do We Use It Within The Automation?
StreamTech uses LiDAR, projecting a laser over the surface of the object, and reading it back, to identify whether it is flat, open or closed. In this implementation, if the object is flat, the system will deliver a “PASS” reading, and allow the package to continue. If it detects an uneven surface that does not meet the required parameters, it will deliver a “FAIL” result, and proceed with the necessary corrective actions.
After a package passes through the package inspection system, this data is transmitted to our PLC, which can:
Flag improperly sealed packages prior to the print-apply shipping system, and send a signal to the printer to inhibit the label from applying.
Inhibit the dimensioner to prevent inaccurate heights.
Alarm a status light and stop them in their place on the conveyor.
Sort them to the “jackpot” lane.
Additionally, this system could be a great way to gather data on your carton sealing or lidding equipment and catch maintenance problems early before they become too costly. Data can be fed back into our Warehouse Control System (WCS) software, to report on and log which orders, which equipment, and/or on which lane these errors are most frequently occurring.
This laser-based detection system is not necessary for every application but can be a very helpful tool in mitigating issues that can arise from poorly constructed or sealed boxes. Automation is a balance, and incorporating the right technology can save you time, and money and make or break the relationship you have with your customer. Adding intelligent components such as this can be most effective when the PLC hardware and WCS software communicate well with each other. Learn about our WCS software, and how it can act as the central hub for your warehouse automation.
StreamTech specializes in fulfillment automation, from picking, pack slip automation, dimension, weigh, scan, labeling sortation, and more. If you are interested in finding ways to improve your warehouse operation, fill out the contact form below and we’ll set up a meeting to discuss your needs.
StreamTech Engineering was invited to provide leadership for the newest MHI industry group called SLAM (Scan Label Apply Manifest).
What Is A SLAM System?
The SLAM (Scan Label Apply Manifest) term is a shorthand acronym to describe shipping automation in large fulfillment centers. As the term describes, the SLAM line identifies parcels, interrogates their weights and dimensions, manifests them with the preferred carrier, and prints-applies and verifies the readability and accuracy of the labels. As an integrator and designer of SLAM systems, StreamTech is excited to be able to contribute to the group, as well as learn from others and help establish best practices.
What Are The Components Of A SLAM System?
StreamTech’s SLAM systems have the equipment necessary to identify packages, weigh, dimension, convey, print, and apply shipping labels, scan verify them for accuracy, manifest them with the multi-carrier system and ERP, and handle sortation routing. Our software system manages other functions such as order tracking, label templates, errors, and maintenance notifications.
Additional Features That A SLAM Line May Include:
Thin-package and polybag customization, such as special sensors
Random order association for singles items
Box inspection systems
Additional use of scale to check the order for quality control
Multiple Labelers (for increased throughput)
Semi or fully automatic bagging or box erecting and closing
SLAM systems can be remarkably cost-effective and efficient. A pre-engineered, pre-configured Sprinter™ can automate the manifesting of up to 1,000 cartons per hour and can pay for itself in as little as three months. Incorporating a SLAM system is a great way of consolidating multiple shipping stations into one, so if there is more than one shipping station, or more than 2 employees spend their day standing at scale weighing boxes, that would be a great time to begin considering a SLAM line. If you are manually dimensioning your parcel shipments, you’ll save a lot of mistakes.
SLAM lines can range from 15 CPM (cases per minute) to over 80 CPM, depending on the speed and the number of labelers. Incorporating a SLAM line can be a much-needed increase in throughput for 3PL’s or other e-commerce fulfillment operations as they grow.
So why choose fulfillment automation? There are a lot of reasons for fulfillment automation, and it ultimately comes down to increasing operational efficiency. It’s not always just about speed. As you are considering the ROI (Return On Investment) for your next warehouse improvement project, here are a few of the reasons to consider fulfillment automation. We’ll explore Labor Efficiency, LaborCosts, Speed, Customer Experience, Flexibility, and Future Growth.
But before we explore the reasons for automation, let’s take a look at the competitive eCommerce landscape and how it’s changing.
Booming eCommerce Growth: Automate Or Miss Opportunities
Fulfillment automation is no longer just for the big players. In order to understand the growing demand for fulfillment automation equipment, let’s first take a look at consumers’ penchant for eCommerce shopping, because they have a correlation.
The pandemic changed that and accelerated eCommerce growth. As consumers were pushed toward a digital life, with fewer in-person events, gas money, and stimulus money to spend, online shopping soared. From Q1 2020 to Q2, however, it grew 37%! During this time, Amazon lost market share, down from 43.8% of all eCommerce sales to just 31.4%. The other top 100 online retailers besides Amazon had a 74.1% share of eCommerce growth, up from 49.4% in 2019.
The above numbers point to a trend – consumers have increased spending, and are spreading their shopping around a wider variety of retailers. If the effect is measurable on the top 100 retailers, it tells us fulfillment automation is not just for the big guys.
Labor Efficiency:
For most fulfillment operations, it is inefficient for employees to perform lots of small repetitive manual tasks, such as scanning, label application, box closure, or sorting. By introducing automation to perform these types of tasks, one employee can now oversee the system, covering multiple tasks with one person, and freeing up the remaining staff to be productive in other areas.
Taking away the burden of repetitive manual tasks and transferring them to more supervisory roles eliminates dangerous situations. Making the operation more ergonomic and less burdensome means employees are less fatigued and less prone to injury.
The cost of manual labor is not fixed – it is subject to increases to match the cost of living. As inflation continues, and societal and governmental pressures push for wage increases, companies are wise to look at automation to minimize this risk. Additionally, manual labor comes with other costs such as liability insurance, personal protective equipment, and health benefits. Optimizing labor also has advantages when it comes to labor shortages. The labor force has seen a reduction in the number of general laborers, which makes automation the next logical step.
Costs:
Aside from the cost of labor, there are other costs associated with fulfilling orders that automation can help reduce. For example, fulfillment automation introduces opportunities to reduce shipping costs. Adding the ability to measure dimensional weight allows for more accurate shipping charges, as most carriers are no longer just charging based on the weight of the carton, but also on its dimensions of it. Another shipping cost reduction comes with the ability to rate shop carriers and ship by the most efficient means possible.
Shipping automation can handle this process very quickly and effectively, without adding much time to the process.
Speed & Customer Experience:
Automation makes the fulfillment process faster. Getting more orders out the door in a shorter amount of time is often the first benefit people think of when considering automation. Increasing production allows for your business to grow, take on more orders, turn around those orders to customers faster, and more accurately, and in turn, increase sales and profits.
The other benefit of speed and accuracy is that your customers receive their orders in a timely fashion, without missing delivery expectations. With a significant increase in the number of choices in order fulfillment, excellent customer service, and personalized order experiences become a much bigger differentiator.
Watch Fulfillment Automation in Action:
Flexibility & Future Growth:
One of the most unsung heroes of fulfillment automation is flexibility and future-proofing. Fulfillment automation gives you the ability to scale with your business needs. When operations are not automated, peak periods like holidays can cause a huge strain on your business – requiring seasonal labor, shipping delays, and other constraints with meeting demand.
Automation can also allow your business to be prepared for growth. Automation gives you the flexibility to add new products and enter new markets without concern about your fulfillment operation being overwhelmed by the capacity.
Explore Fulfillment Automation Technologies:
When considering a fulfillment automation system, it is most efficient when it can be centrally controlled and integrated, all the way from picking, packing, shipping, and final sortation. StreamTech offers the integration necessary to bring all the automation together and maximize your return on investment.
Dimensional (DIM) weight, also known as volumetric weight is a pricing technique for commercial freight transport. This method uses an estimated weight that is calculated from the length, width, and height of a package. The air freight industry initially created DIM weight measurement. Low-weight packages that took up a lot of space were costing carriers revenue. To solve this problem dimensional weight was created which bases weight on the volume of the container. This is known as charging by dimweight.
The Formula Looks Like This:
(L x W x H) / DIM
A growing number of ground trucking companies have adopted dimweight. If you are considering fulfilling e-commerce orders through a carrier that utilizes DIM weight, it is vital to get the measurements correct. To get the biggest bang for your buck, you would be wise to spend time analyzing box sizes, and also researching which products fit into which container.
The Cost Of Not Dimensioning:
Chargebacks are the main driver for incorporating dimensioning solutions with the overall SLAM system (as well as weigh, scan, print/apply). As carriers/shippers have incorporated stricter rules, there are added costs for parcels that exceed certain lengths as well as weights and chargebacks for inaccuracies. Chargebacks exceed the costs associated with just doing it right the first time.
UPS charges an additional $1 fee per package if the inaccuracies on the total of your packages in a given shipment pickup amount to over $5 average per package. A traditional fishing pole example – it’s super lightweight but very long. If shipped based on weight alone, there would be a carrier chargeback. For more details on these costs, check out this post from ShipWorks, a multi-carrier software provider.
How Can You Streamline This Process?
Getting the data correctly is a must for optimizing costs and fulfillment, but what happens if you get it wrong? The short story is you get charged. As the e-commerce industry evolves so does the cost related to fulfilling these orders. Increased prices cut into the margins for sales which means mistakes are now a direct cost to the shipper.
Capturing all of this data and getting it correct is time-consuming and stressful. If you are now asking yourself, “How do I solve this problem?”, You are in the right place. StreamTech has successfully designed and implemented shipping automation systems that not only weigh but dimension and get it right every time.
As a manufacturer of custom shipping, compliance labeling, and a wide variety of additional material handling systems we recognize that everyone starts somewhere. The most common comment(s) we get regarding automation fulfillment is, “Automating my process would be nice but, we are too small…don’t have enough throughput… can’t afford it. While some of these statements may be true hurdles before diving into automation, we believe the Sprinter™ Shipping System is a good first step to negating these entry barriers.
What Does The Sprinter™ Do?
More often than not someone walks up to the StreamTech Demo Sprinter™, studies it, and then asks, “But what does it do?” From the outside, the Sprinter™ looks like nothing more than a piece of conveyor shuffling cartons through and slapping a label on them. The inner workings of the Sprinter™ are gathering, connecting, and verifying data to simplify end-of-line processes.
The Sprinter™ all-in-one shipping station is capable of scanning, weighing, dimensioning, printing, and applying labels and verifying. It can also integrate with a multitude of additional features. Ten feet doesn’t seem like a significant impact, but by combining the individual process that is manually done you are not only saving space but time with an all-in-one system.
The Sprinter™ comes into play after the pick and pack process. We also manufacture other fulfillment automation processes that fall into place before the Sprinter™ such as picking automation or pack automation. An order has already been tied to the LPN (License Plate Number) or unique identification number. The Sprinter™ can handle a minimum carton size of 4” W x 6” L and a maximum of 21” W x 26” L. The carton is typically closed and ready to go through the end-of-line fulfillment process.
Induction Scan
The first step in most processes is identifying what you are working with. The Sprinter™ is no different. Its first order of business is to scan the LPN or identification barcode. Unique identification is required when manifesting a carton for a carrier. This can be the specific order number or a number that is uniquely associated with the order. The Sprinter™ is capable of scanning a wide variety of barcode symbologies, sizes, and locations.
Once the barcode is examined, it is now ready to add details. One of the many beneficial aspects of the Sprinter™ is its Allen-Bradley-based control system. The open architecture allows the Sprinter™ to expand and integrate with existing and future operations quickly. Additional features such as a dimensioner can speed up operations and provide accurate, error-free details to the carton.
Weighing
The weight of the carton is captured and recorded in StreamTech’s Warehouse Control System (WCS) software. The Sprinter™ scale is suitable for weighing parcels up to 75 lbs. and 28” long. With a throughput of 14-18 cartons per minute, the Sprinter™ scale is a viable option for taking your first step into automating the end-of-line fulfillment process. For faster throughput and additional options, we offer upgraded scales.
Dimensioning
Automating dimensional weighing is a valuable option that saves on many fronts. We utilize a laser-based system with an encoder that measures the carton to the nearest 0.25 inches in 3 dimensions. Automating dimensioning can mean significant time & cost savings. On average it takes an employee 15-30 seconds to measure and record the dimensions of a carton.
Along with those 15-30 seconds come mistakes occasionally. Sprinter™’s dimensioner cuts that time down to a fourth and also does it error-free as it records the data into the StreamTech Sprinter™ software. You are now holding your carriers accountable for dimweight charges along with maintaining your service level.
Print And Apply Labeling
All of the data we require for each carton has been captured and recorded. It’s time to print and apply the shipping label. StreamTech utilizes an all-electric print and apply applicator. It is low maintenance and offers easy label roll change-out. The 14” tamp comes standard with an option for a 22” as an upgrade. For even faster operations we utilize a larger printer applicator with the capacity to hold 3,800 labels per roll with a 36” tamp stroke.
Verify
Accuracy is the Sprinter™’s forte. After all of the pieces of the puzzle come together they are checked one last time to make sure they are correct. The Sprinter™ scans the LPN and shipping label for a parity check. If all checks out the carton are sent down its proper carrier lane. If there is a problem with the parcel it will be sent down the “jackpot” lane for review by an employee.
Watch a Demo:
The StreamTech Sprinter™ is a great first step into automating end-of-line fulfillment processes.
Through Its All-In-One Nature The Sprinter™ Shipping System Brings Numerous Benefits:
Reduce manual labor
Eliminates the need for shipping stations dedicated by carrier
Holds your carrier accountable for dimweight charges
Eliminates data entry errors
Increases your throughput while maintaining your service level
Paired with a multi-carrier system the Sprinter™ automates rate-shopping, address verification and proof of delivery
